TFT LCD Display Module Supplier
Etouch is a professional industrial-grade TFT display module manufacturer in China, focus on display size from 1.5 inch to 32 inch
Over 20 years of manufacturing experience
Stable and competitive TFT panel resource
Orientation of industrial-grade display product
Engineering capability for custom design service
Get Our Best Quotation
Etouch TFT LCD Display Module
While the trend of HMI (human-machine interaction), the demand of display increases rapidly year by year. Based on the advantages of vivid display colors, mature technology and affordable cost, it is no doubt that TFT LCD display is always the most popular display option.
Compared with the huge display demand for commercial goods like cellphone, laptop etc. Etouch prefers to being concentrate on industrial fields, whose demand is much smaller comparatively, but quality requirement is much higher. This core orientation leads Etouch’s continuous innovating and developing for the industry application field.
Till now, Etouch have TFT product list of over 210 part Nos. Besides some standard TFT display module with the same specification as the mainstream in the market, the other over 70% parts are custom design type, the polarizer, backlight, PCB board, metal frame or touch screen is individually designed according to customer specific application requirement.
TFT LCD Display Series

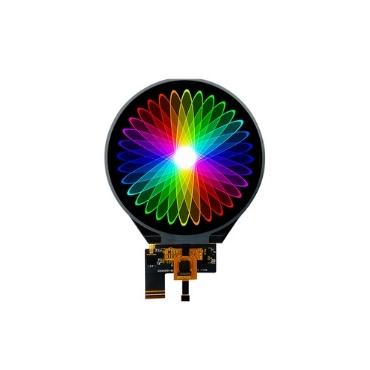

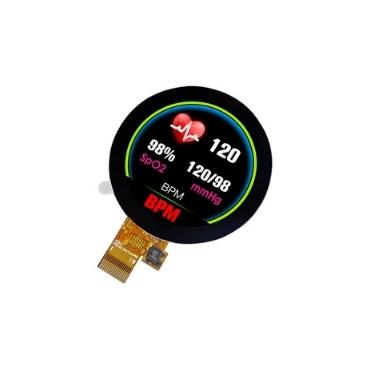

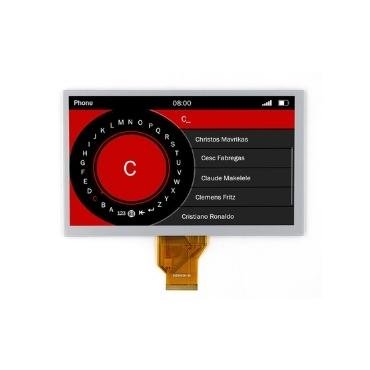

Standard TFT DisplayEtouch have a list of existing 210+ standard TFT display parts, that is the extraction of our past 20 years project experience. Easy to find a suitable solution with short lead time and no tooling charge.Send Inquiry Now- Round TFT DisplayEtouch also provide some types of round TFT display. If your project looks for fashion appearance design or with space limit for display part, you could take a reference of these special round display.Send Inquiry Now

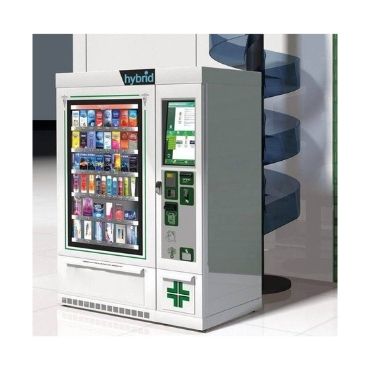

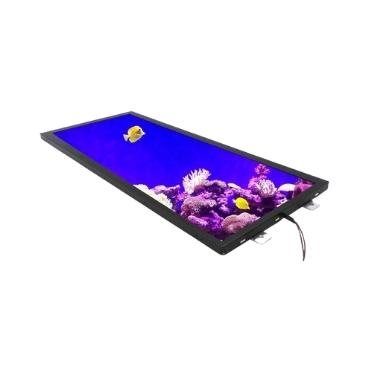

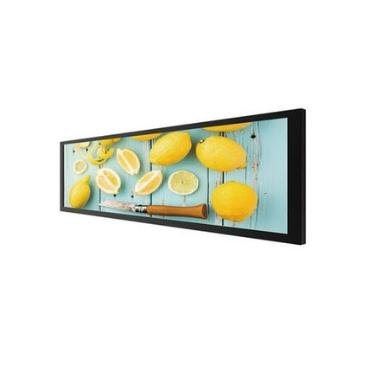

- Bar type TFT DisplayDifferent from the regular 4:3 or 16:9 landscape display, this unique wide aspect ratio design provides versatility, leading an innovative display prevail for the application of advertising and vending shelf label.Send Inquiry Now

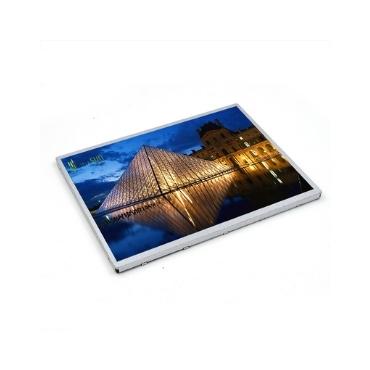

- All-view-angle TFT DisplayWith technology developing, TFT display with wider viewing angle and higher contrast is favored in the market, due to its more convenient and satisfactory usage feelings. Etouch have displays of technology options like IPS, MVA, FFS, etc.Send Inquiry Now

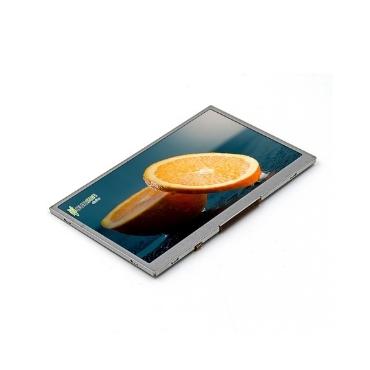

- Wide Temperature TFT DisplaySome TFT LCD display must be applied in harsh environment, for example, in enclosed space, outdoor application in Middle East or Siberia Area, which requires extremely wide temperature at least -30~80C even higher and lower.Send Inquiry Now
- Sunlight Readable TFT DisplayWhen the TFT display application is outdoor, sunlight readable is mandatory requirement. Etouch provide optimized solution by collocating polarizer type, backlight brightness and surface treatment.Send Inquiry Now
TFT LCD Display By Size
1.5 inch TFT LCD Display

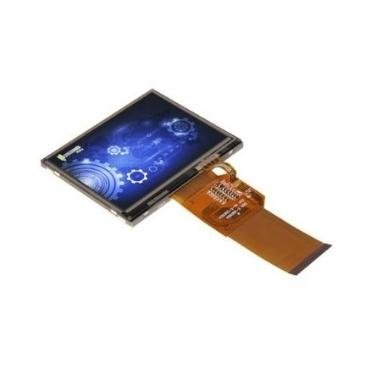

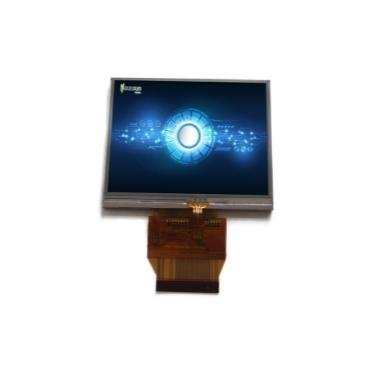

Send Inquiry Now3.5 inch TFT LCD Module

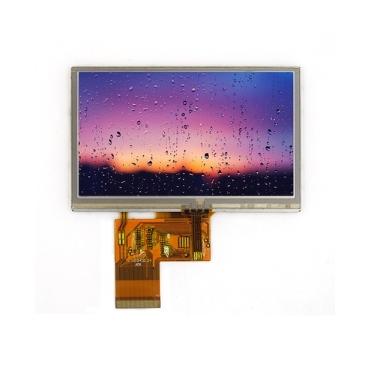

Send Inquiry Now4.3 inch bar TFT LCD Module

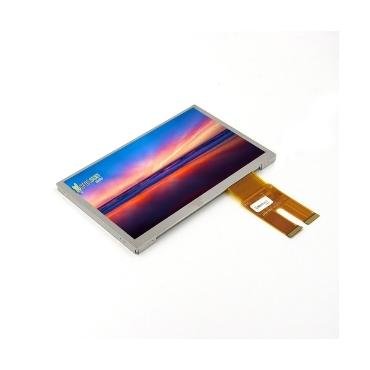

Send Inquiry Now7.0 inch TFT LCD Module
Send Inquiry Now8.4 inch TFT LCD Module
Send Inquiry Now10.4 inch TFT LCD Module
Send Inquiry Now12.1 inch BAR Type TFT LCD
Send Inquiry Now15 inch TFT LCD Module
Send Inquiry Now19 inch TFT LCD Module
Send Inquiry Now
Industrial-grade TFT LCD Display Advantage
Long Longevity
Min. 3 years product longevity since MP
High Durability
Typical more than 50K+ LED life time
High Reliability
More than 300hrs reliability test guarantee
Wide Temperature
Tolerable operating temperature up to -30~85C
TFT Family-Size Range Selection
Thanks to the produce-line generation upgrade, the realistic TFT size has been from 0.96 inch~110 inch. But Etouch just focus on the size range 1.5 inch to 32 inch, by full using of project experience and equipment capability we have and are good at, to be the expert in the specific size range.
Etouch provides family-size selection of 1.5~ 32inch. The mainstream like 4.3 inch, 7 inch, 10.4 inch, or less popular size like 5.46 inch, 6.5 inch, 11.6 inch and more, you can find solution in Etouch here.
One-stop Service

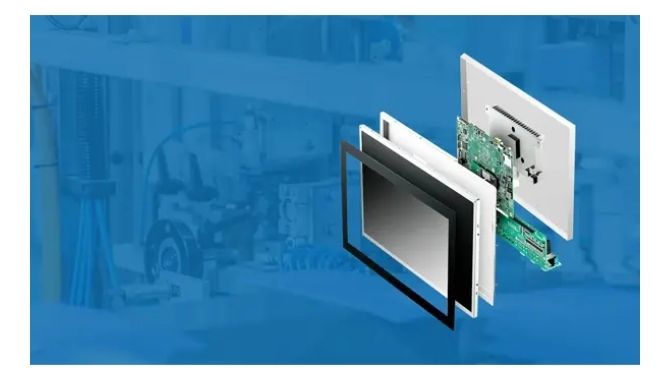

Besides being TFT LCD module maker, Etouch is also touch panel maker, setting own touch-senor, and cover lens produce line.
We can provide TFT display only, but also is capable to produce integrated parts, laminating LCD module and touch panel together. We recommend this one-stop service with aim to simplify the purchase process and cost, and shorten delivery date.
Customized Capability For TFT LCD Display Product
Besides supplying standard modules of universal specs in the market, Etouch is capable to full-custom or semi-custom design TFT display for specialized applications. Our R&D team’s experience could assist the customer to transform the application requirements to specific product parameter value. Their deep expertise could help realize the initial idea to be final product.
Etouch is capable to customizd:
TFT display panel design (by cooperating with leading TFT display manufacturers)
Polarizer material selection

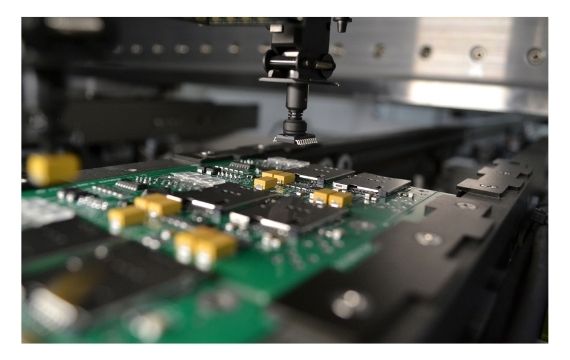

PCB layout design
Metal frame design
Backlight design
Touch screen design
Cover Lens design
Lamination method design
Software and firmware development
Testing method and testing jig design
As well as other additional function the customer intent to combine with.
TFT LCD Display Features By Applications

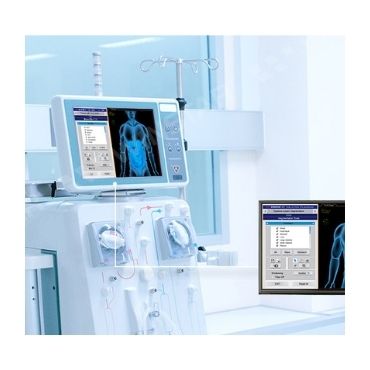

Display of high resolution, high contrast ratio and low color shifts provide more clear and accurate image, which will help the doctors during diagnosis and treatment process.
Display of high resolution, high contrast ratio and low color shifts provide more clear and accurate image, which will help the doctors during diagnosis and treatment process.
Due to transportation application’s long operating time and vibration environment, it is also requires high reliability display with long life time.

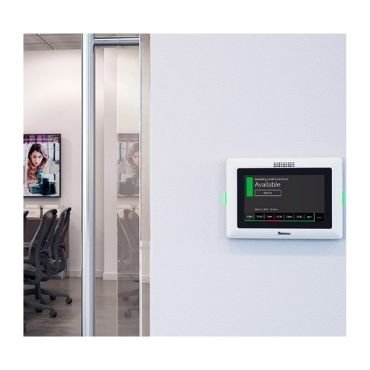

The modern office and security system is indoor application, but the actual operating time is long even 24 hours per day. The display must keep high reliability at long life time.
Super narrow border for wider display picture, plus high resolution and life-like colors for vivid picture image, will help attract more customers’ interest.

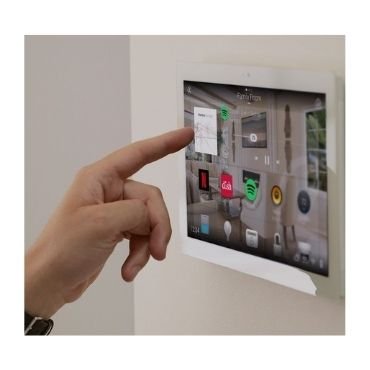

Thanks to technology innovation like higher resolution, narrower boarder, wider viewing angle etc, the fashion display appearance becomes driving factor for home appliance’s upgrade.
Etouch TFT LCD Display Manufacturer in China
To professionally serve clients worldwide by wide range of LCD technology, expert capability, advanced produce equipment and experienced sale- service.

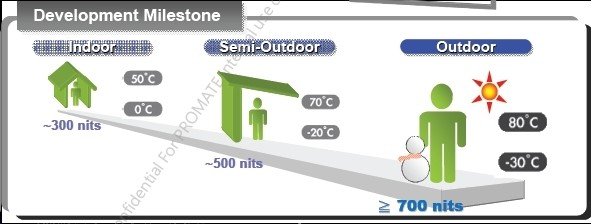

What is the Sunlight Readability (NITS)?
Normally brightness of sunlight readability is suggested min 700cd/m2.
Below application suggestion for your reference.
What is the Bonding Material or Process Between Display and Touch Screen?
The bonding material options including DST(double-side tape), OCA(Optical Clear Adhesive) and OCR/LOCA(Liquid Optical Clear Adhesive).
For the bonding between display and touch sensor, normally the priority option is air bonding by double-side tape if the customer does not have special requirement.
It is more difficult to do OCA bonding, because there is a front bezel on the TFT surface, that is not full flat surface.
The yield rate is lower, the material cost is also much higher.
Besides, if do optical bonding for TN type TFT, it will cause water wave problem when pressing the cover surface. So we recommend OCA bonding only for IPS type TFT.
What Storage Humidity is Specified?
We guarantee 90% max. RH for Ta ≤40℃
<50%RH for 40℃

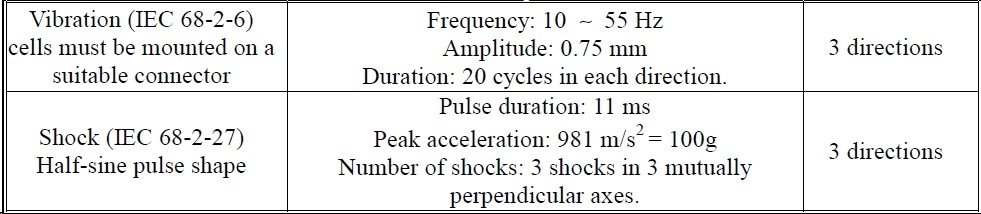

What is the Data on Shock and Vibration?
Below is the standard shock and vibration test condition for TFT product
How Long is about Your TFT Product Longevity Support?
We only select industry-grade TFT panels, that these leading manufacturers guarantee min. 3 years longevity from MP.
Etouch guarantee available supply as long as panel is not EOL.
