Your Reliable Cover Glass
Designer & Manufacturer In China
We are committed to customizing the most perfect cover glass solution for your project
Get Our Best Quotation
What Cover Glass is for?
Capacitive touch panel is composed with touch sensor, bonding material and cover lens. Firstly, the main function of cover lens is to physically protect touch senor from damage. Secondly, cover lens is the topside layer of the whose module, its cosmetic design is the important part of the whole module’s appearance design. Finally, when the touch panel is applied with stylus touch input, stylus writing on the cover lens will be required with like page-writing feeling.
Featured Cover Glass

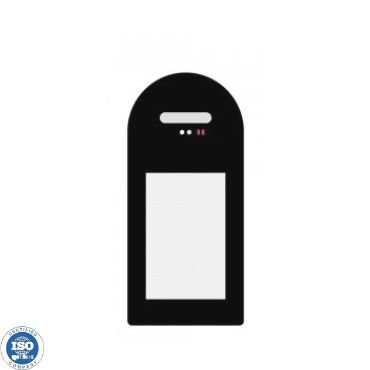

4.3 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mmSilk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film

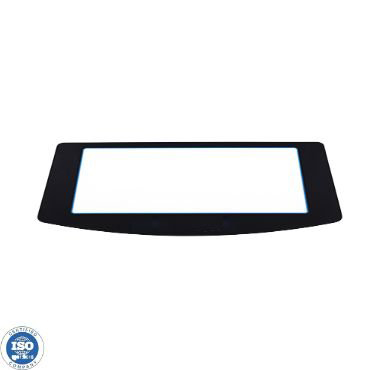

Send Inquiry Now- 7.0 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mm
Silk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film

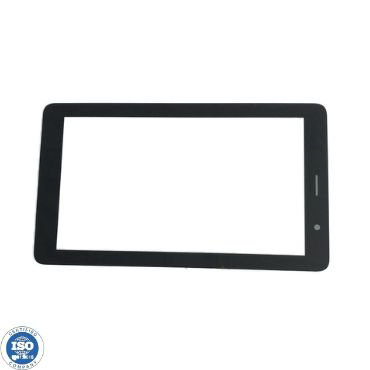

Send Inquiry Now - 10.1 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mm
Silk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film

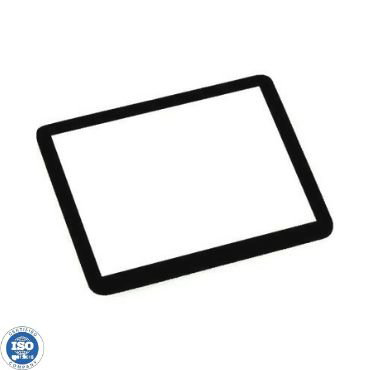

Send Inquiry Now - 19.0 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mm
Silk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film

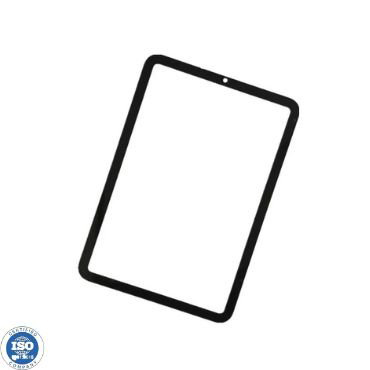

Send Inquiry Now - 21.5 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mm
Silk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film

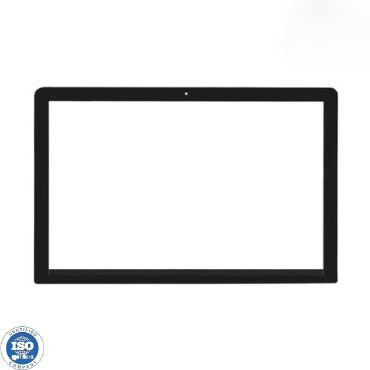

Send Inquiry Now - 27.0 inch Trapezoid Cover GlassThickness: 0.4mm~3.0mm
Silk Colour: Black, White, Silver
Customized & Semi-Customized Supported
Structure: G+G, G+Film
Send Inquiry Now
Key Parameter for Industrial-grade Cover Glass
Long Longevity
Min. 3 years product longevity
since MP
High Durability
Typical more than 10K test times
High Reliability
More than 2 weeks reliability test guarantee
Wide Temperature
Tolerable operating temperature up to -20~75C
Easy to Customize Cover Glass
Differ from sensor size being standard size matching with display size, cover lens could be individualized customize by combine-considering product function requirement and appearance design expectation.
Etouch can customize cover lens with options of material, thickness, color, shape and surface treatment, and more.

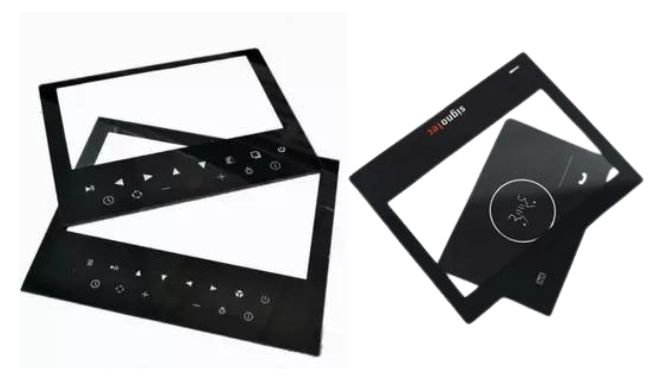

Materials for Cover Glass
The material of cover lens could be strengthened glass, PMMA (Polymethyl methacrylate)/ PC or PET. while Etouch just specialize in offering glass type cover lens, using
Corning Gorilla Glass : it is the most famous cover glass material, recognized of superior performance, durability and available being very thin or thick.
AGC(Asashi) Glass : it is high-end glass brand of Float glass manufacturing technology. It has series of green galss and clear white glass.
SG Aluminosilicate Glass: it is one of most well-known China brands. Its Aluminosilicate Glass is with advantage of high hardness>9H, and strong anti-impact capability.

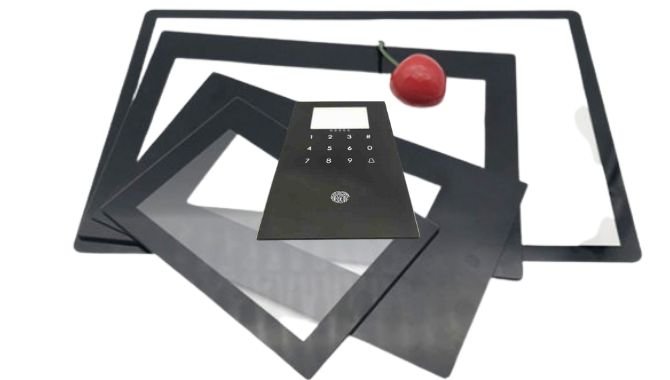

Cover Glass Thickness
The recommended cover lens thickness is 0.55mm, 0.7mm, 1.1mm, 1.8mm, 2.0mm, 2.2mm, 3mm and 4mm.
The thickness choice is not only depending on impact protection, but also considering to match related controller IC ability. If the project requires a thicker cover glass, we will choose touch controllers like EETI, Ilitek, that could support cover glass thickness up to 15mm.

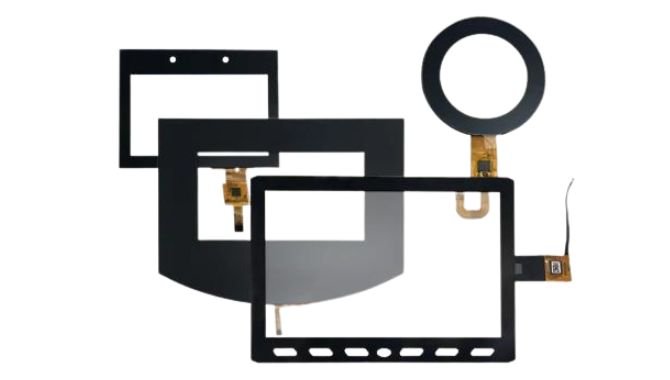

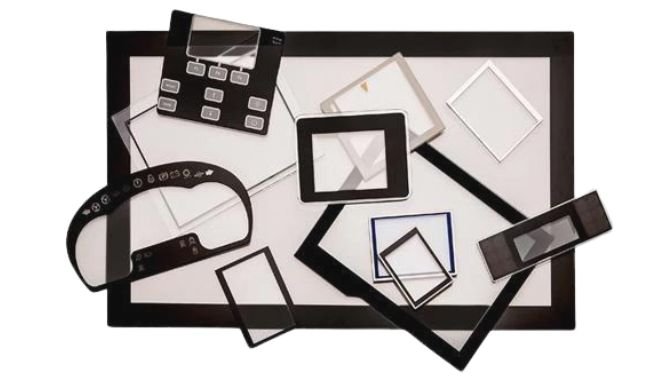

Free Shape of Cover Glass
The shape of cover glass could be free-customized to any shape, rectangle, trapezoid, circular even irregular shape, and adding hole, edging, precise machined by CNC machine.

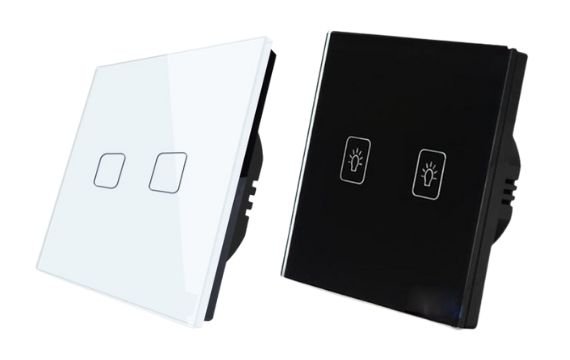

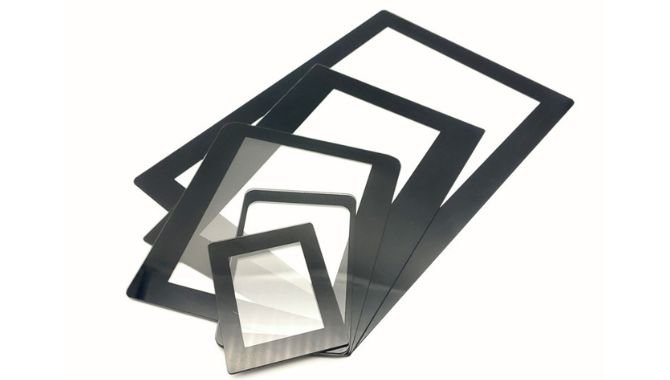

Silk Screen of Cover Glass
Variety of color and printing layers, capable of diverse inks such as high-temperature ink, IR ink or metal ink variety of color and printing layers, capable of diverse inks such as high-temperature ink, IR ink or metal ink.
Free Shape of Cover Glass

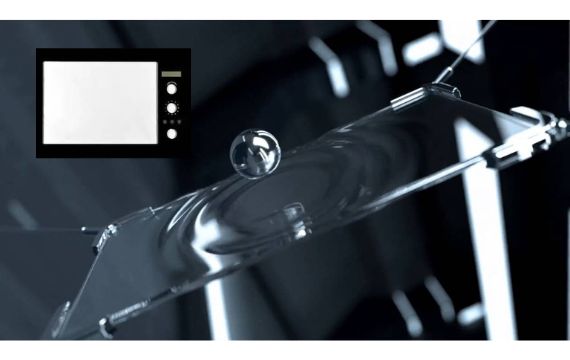

AG(Anti-glare) : By creating single or double-side rough surface on the cover lens in order to avoid bright glaring visiual feeling, meanwhile strengthen anti-scratch performance.
AR(Anti-reflection): By coating a AR film on the cover lens to reduce the reflection on the cover glass surface, leading improved the transmittance rate of display through cover lens.
AF(Anti-finger): By vacuum coating a type of chemical material on the cover glass surface to prevent the cover glass surface from fingerprints, smudges and greasy dirt being left on, to keep surface clean.

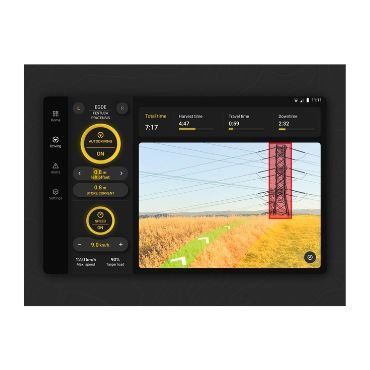

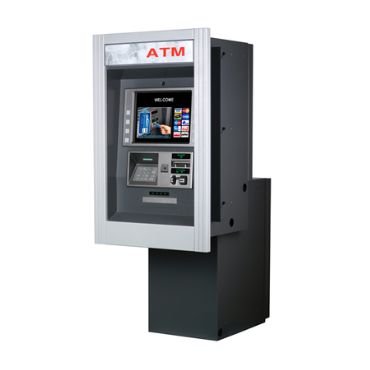

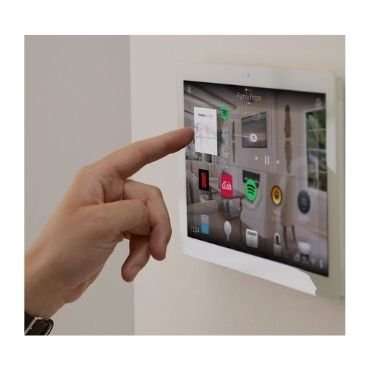

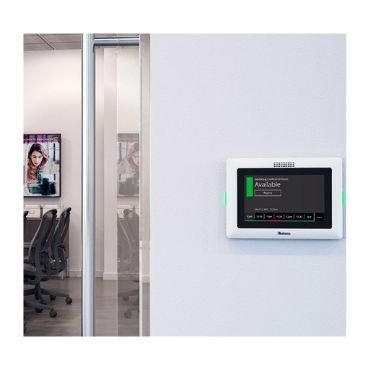

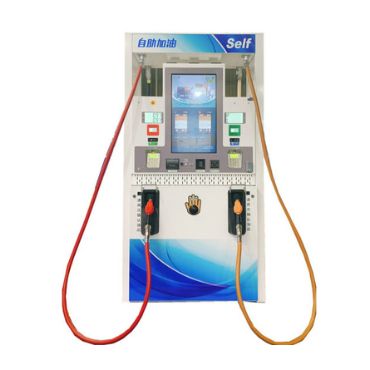

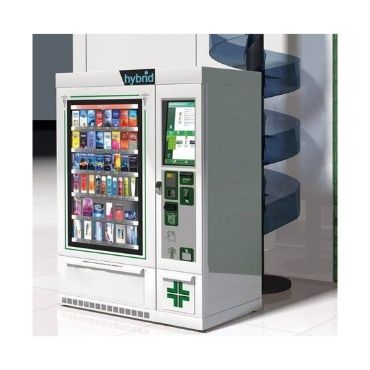

Cover Galss in Wide Applications
Size: 3.5 inch
Strength Method: Chemically Strengthened Glass
Surface Treatment: AF
Color Silk: White
Size: 15 inch
Thickness: 2.0 mm
Strength Method: Chemically Strengthened Glass
Surface Treatment: AG on Single Surface
Size: 8.4 inch
Thickness: 2.0 mm
Strength Method: Chemically Strengthened Glass
Surface Treatment: AG on Single Surface
Size: 7.0 inch
Strength Method: Chemically Strengthened Glass
Surface Treatment: AG on Single Surface
Color Silk: White
Size: 15.0 inch
Strength Method: Chemically Strengthened Glass
Surface Treatment: AG on Single Surface
Color silk: White
Size: 30 inch
Thickness: 2.0 mm
Strength Method: Chemically Strengthened Glass
Surface Treatment: AG on Single Surface
Color Silk: Black Silking, Anti-UV 1300 Hrs
Etouch-Industrial Cover Galss Manufacturer in China
To professionally serve clients worldwide by wide range of LCD technology, expert capability, advanced produce equipment and experienced sale- service.
What is the Sunlight Readability (NITS)?
Normally brightness of sunlight readability is suggested min 700cd/m2.
Below application suggestion for your reference.
What is the Bonding Material or Process Between Display and Touch Screen?
The bonding material options including DST(double-side tape), OCA(Optical Clear Adhesive) and OCR/LOCA(Liquid Optical Clear Adhesive).
For the bonding between display and touch sensor, normally the priority option is air bonding by double-side tape if the customer does not have special requirement.
It is more difficult to do OCA bonding, because there is a front bezel on the TFT surface, that is not full flat surface.
The yield rate is lower, the material cost is also much higher.
Besides, if do optical bonding for TN type TFT, it will cause water wave problem when pressing the cover surface. So we recommend OCA bonding only for IPS type TFT.
What Storage Humidity is Specified?
We guarantee 90% max. RH for Ta ≤40℃
<50%RH for 40℃
What is the Data on Shock and Vibration?
Below is the standard shock and vibration test condition for TFT product
How Long is about Your TFT Product Longevity Support?
We only select industry-grade TFT panels, that these leading manufacturers guarantee min. 3 years longevity from MP.
Etouch guarantee available supply as long as panel is not EOL.
