TFT Display with Capactive Touch Screen

Etouch is manufacturer of display, PCAP touch screen and cover glass. With over 20 years projects experience, Etouch have designed and produced series of standard touch display modules covering main market-popular size range, such as 2.8”,3,5”, 4.3”, 7”, 10.1”, 12,1”etc, offering a multitude of different TFT module, touch driver IC and cover glass combination.



It is economic for the customer can choose the standard parts to save tooling cost and L/T if the specs is well suitable. If not, it is also easy to do semi-customize design, to modify TFT touch interface, or cover glass based on your own project requirement.

TFT Display With Standard Capacitive Touch Screen Series

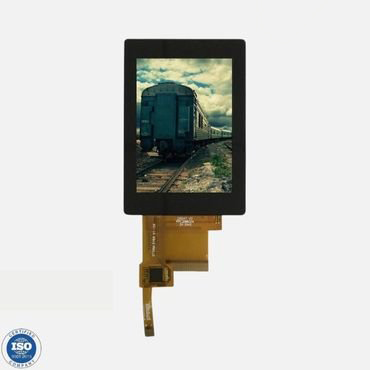

  • 2.8 inch TFT with CapacitiveTouch Screen
    2.8 inch TFT with CapacitiveTouch Screen
    2.8 inch TFT with CTP/PCAP

    TFT: 240 x 320, of SPI

    Touch: PCAP, of I2C

    Send Inquiry Now

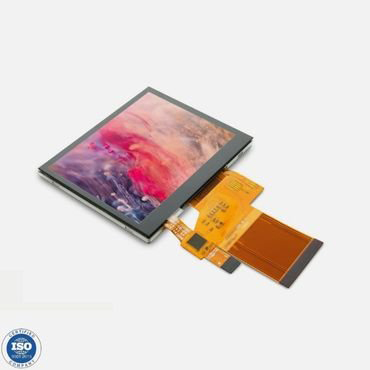

  • 3.5 inch TFT with Capacitive Touch Screen
    3.5 inch TFT with Capacitive Touch Screen
    3.5 inch TFT with CTP/PCAP

    TFT: 320 x 480, of SPI

    Touch: PCAP, of I2C

    Send Inquiry Now

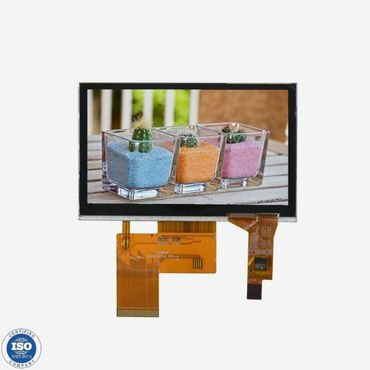

  • 4.3 inch TFT with Capacitive Touch Screen
    4.3 inch TFT with Capacitive Touch Screen
    4.3 inch TFT with CTP/PCAP

    TFT: 480 x 272, of RGB

    Touch: PCAP, of I2C

    Send Inquiry Now

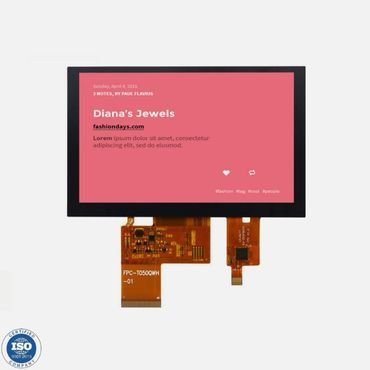

  • 5.0 inch TFT with Capacitive Touch Screen
    5.0 inch TFT with Capacitive Touch Screen
    5.0 inch TFT with CTP/PCAP

    TFT: 800 x 480, of RGB

    Touch: PCAP, of I2C

    Send Inquiry Now

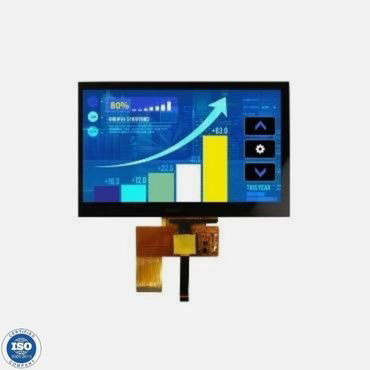

  • 7.0 inch TFT with Capacitive Touch Screen
    7.0 inch TFT with Capacitive Touch Screen
    7.0 inch TFT with CTP/PCAP

    TFT: 800 x480, of RGB

    Touch: PCAP, of I2C

    Send Inquiry Now

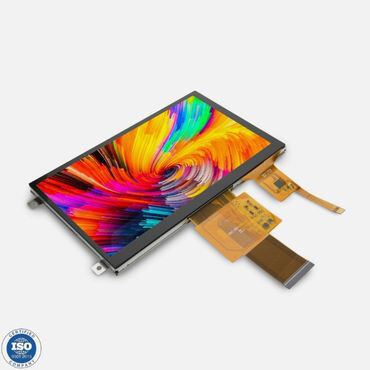

  • 7.0 inch TFT with Capacitive Touch Screen
    7.0 inch TFT with Capacitive Touch Screen
    7.0 inch TFT with CTP/PCAP

    TFT: 1024 x600, of LVDS

    Touch: PCAP, of USB

    Send Inquiry Now

Etouch provides below standard touch display modules with capactive touch(CTP/PCAP). Please contact us for detailed information.


SizeResolutionActive AreaOutline SizeBrightnessViewing AngleInterfaceTouch PanelRemarks
(inch)
(mm)(mm)(nits)



2.8″240 x 32043.20 x 57.6050.10 x 69.30 x 3.5850080/80/80/80TFT: SPI or RGB / CTP: I2Cw. CTP
2.8″240 x 32043.20 x 57.6050.00 x 69.20 x 3.3820045/20/45/45TFT: SPI or MCU or SPI+RGB  / CTP: I2Cw. CTP
3.5″320 x 48048.96 x 73.4454.66 x 82.94 x 3.6530080/80/80/80TFT: RGB / CTP: I2Cw. CTP
3.5″320 x 24070.08 x 52.5676.90 x 63.9 x 5.150085/85/85/85TFT: RGB / CTP: I2Cw. CTP
3.5″320 x 24070.08 x 52.5676.90 x 63.9 x 5.0530050/70/70/70TFT: SPI + RGB / CTP: I2Cw. CTP
3.5″320 x 24070.08 x 52.5676.90 x 63.9 x 5.190085/85/85/85TFT: RGB / CTP: I2Cw. CTP
3.5″320 x 24070.08 x 52.5676.90 x 63.9 x 4.3725050/55/60/60TFT: SPI or RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.86105.5 x 67.2 x 4.547080/80/80/80TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.86105.5 x 67.2 x 4.590080/80/80/80TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.856105.5 x 67.2 x 4.585050/70/70/70TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.856105.5 x 67.2 x 4.5240050/70/70/70TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 80056.16 x 93.6062.50x 105.55 x 4.1830080/80/80/80TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.86105.5 x 67.2 x 4.542050/70/70/70TFT: RGB / CTP: I2Cw. CTP
4.3″480 x 27295.04 x 53.856105.5 x 67.2 x 5.630050/70/70/70TFT: RGB / CTP: I2Cw. CTPw. CTP transfer board
4.3″480 x 27295.04 x 53.856105.5 x 67.2 x 4.5290050/70/70/70TFT: RGB / CTP: I2Cw. CTP
5″800 x 480108 x 64.8120.7 x 75.8 x TBD40050/70/70/70TFT: RGB / CTP: I2Cw. CTP
5″800 x 480108 x 64.8120.7 x 75.8 x 4.5820050/70/70/70TFT: RGB / CTP: I2Cw. CTPExternal DC/DC
7″800 x 480154.08 x 85.92164.9 x 100.0 x 7.536050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″800 x 480154.08 x 85.92164.9 x 100.0 x 7.636050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″800 x 128094.2 x 150.72106.12 x 163.77 x 4.330089/89/89/89TFT: MIPI / CTP: I2Cw. CTP
7″800 x 480154.08 x 85.92164.9 x 100.0 x 7.586050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″800 x 480154.08 x 85.92164.9 x 100.0 x 7.686050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″1024 x 600154.21 X 85.93164.9 x 100.0 x 5.534085/85/85/85TFT: RGB / CTP: I2Cw. CTP
7″800 x 480152.4 x 91.44165 x 104 x 7.136060/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″1024 x 600154.21 X 85.93164.9 x 100.0 x 5.5034085/85/85/85TFT: LVDS / CTP: I2Cw. CTP
7″1024 x 600154.21 X 85.93164.9 x 100.0 x 6.4334085/85/85/85TFT: LVDS / CTP: USBw. CTPUSB: Support windows
7″1024 x 600154.21 X 85.93164.9 x 100.0 x 5.2130085/85/85/85TFT: LVDS / CTP: I2Cw. CTPOptical Bonding
7″800 x 480154.08 x 85.92164.9 x 100 x 7.4535050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″800 x 480154.08 x 85.92164.9 x 100 x 7.6035050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7″800 x 480152.4 x 91.44165 x 104 x 6.355050/70/70/70TFT: LVDS / CTP: I2Cw. CTP
7″800 x 480154.08 x 85.92164.8 x 99.8 x 7.6020050/70/70/70TFT: RGB / CTP: I2Cw. CTP
7.84″400 x 128059.4 x 190.0867.8 x 205.78 x 6.9376580/80/80/80TFT: MIPI / CTP: I2Cw. CTP
7.84″400 x 128059.4 x 190.0867.8 x 205.78 x 6.9376580/80/80/80TFT: MIPI / CTP: I2Cw. CTP
8″800 x 480176.64  x 99.36192.8  x 116.9  x 7.9530050/70/70/70TFT: RGB / CTP: I2Cw. CTP
8″1024 x 600176.64 × 99.36192.8×116.9×8.043070/75/75/75TFT: LVDS / CTP: I2Cw. CTP
8″1024 x 600176.64 × 99.36192.8×116.9×8.043070/75/75/75TFT: LVDS / CTP: USBw. CTP
10.1″1024 x 600222.72 X 125.28235.0 X 143.0 X 7.090085/85/85/85TFT: RGB / CTP: I2Cw. CTP
10.1″1200 x 1920135.36 x 216.576151.0 x 240.5 x 3.6937085/85/85/85TFT: MIPI / CTP: I2Cw. CTP
10.1″1024 x 600222.72 X 125.28235.0 X 143.0 X 7.030050/70/70/70TFT: RGB / CTP: I2Cw. CTPExternal DC/DC
10.1″1024 x 600222.72 X 125.28235.0 X 143.0 X 6.732050/70/70/70TFT: LVDS / CTP: I2Cw. CTPExternal DC/DC
10.1″1024 x 600222.72 X 125.28235.0 X 143.0 X 7.055085/85/85/85TFT: LVDS / CTP: I2Cw. CTPExternal DC/DC
10.1″1024 x 600222.72 X 125.28257.96 X 168.6 X 7.055085/85/85/85TFT: LVDS / CTP: I2C or USBw. CTPExternal DC/DC
10.1″1024 x 600222.72 X 125.28235.0 X 143.0 X 7.326050/70/70/70TFT: RGB / CTP: I2Cw. RTPInternal DC/DC
10.1″1024 x 600216.96  x 135.6229.46 x 149.3  x 4.5325085/85/85/85TFT: LVDS / CTP: I2Cw. CTP
10.4″1024 x 600210.432 x 157.824225.5 x 176.3 x 10.745088/88/88/88TFT: LVDS / CTP: USBw. CTPWith LED driver
11.6″1024 x 600256.32×144.18263.40 x 157.22 x 2.840088/88/88/88TFT: EDP / CTP: I2Cw. CTP
12.1″1280 x 800261.12 x 163.2277.7 x 180.6 x 11.335085/85/85/85TFT: LVDS / CTP: USBw. CTP
